EXAC Brand Hydraulic Iron Workers

     EXAC Brand Hydraulic Iron Workers ---    Q35Y Series Hydraulic Iron Worker    ---

Previous ‹‹ » Next

EXAC Brand Hydraulic Iron Workers

ܼϵ

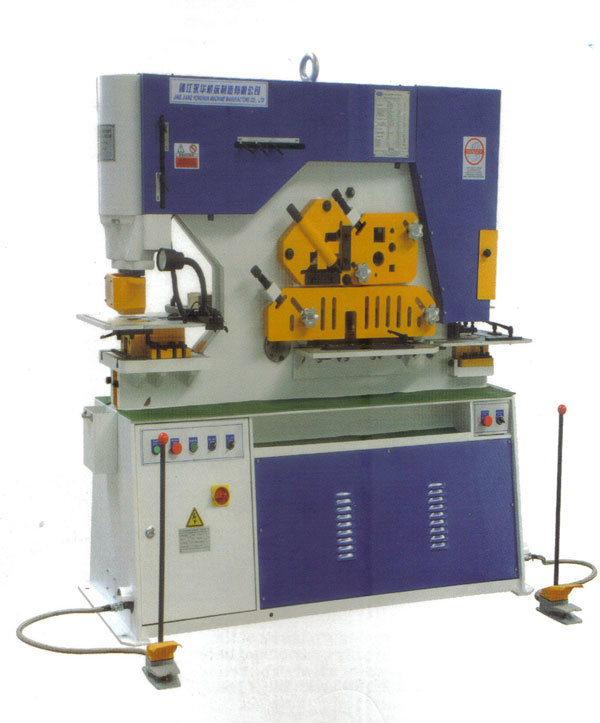

They adopt hydraulic driving system and they are the latest iron workers in our country,Various metal plate,squarebar,Round bar,angle,channel and joist can be cut,punched and notched on the machine.It is also equipped with a stop device for cutting.

Technical Data:
Model
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
Pressure(Ton)
55
75
110
140
Max.cutting thickness(mm)
16
20
25
30
Plate strength(N/mm2)
≤450
≤450
≤450
≤450
Cutting angle(degree)
Sheraing size of one stroke(mm)
16*250
8*400
20*330
10*480
25*330
16*600
30*355
20*600
Ram stroks(mm)
80
80
80
80
Number of strokes(cpm)
8
8
6
6
Throat depth(mm)
300
355
400
600
Punching thickness(mm)
16
20
25
26
Max.Punching diameter(mm)
25
30
35
38
Power of main motor(kw)
4
5.5
7.5
11
Overall dimensions(L*W*H)mm
1640*730*1770 1640*800*1900 2355*960*2090 2680*1040*2300
Weight of machine(kg)
1600
2000
4800
6800



A Special order for the joist and channel moulds needed.

Profile
Round Bar
Square Bar
Equal Angle
T-Bar
joistq
Channel
90°Shearing
45°Shearing
90°Shearing
45°Shearing
Section View
Q35Y-16
45
40*40
125*125*12
70*70*8
120*120*12
60*60*8
126*74*5
126*53*5.5
Q35Y-20
50
50*50
140*140*12
70*70*10
140*140*12
70*70*10
160*86*6
160*60*6.5
Q35Y-25
60
50*50
160*160*14
80*80*7
160*160*14
80*80*10
200*102*9
200*75*9
Q35Y-30
65
55*55
180*180*16
80*80*10
180*180*16
80*80*10
280*124*10.5
280*86*11.5
Q35-16
45
40*40
125*125*12
100*100*10
125*125*12
100*100*10
180*94*6.5
180*68*7
QA34-25
65
55*55
150*150*18
110*110*14
150*150*18
110*110*14
300*126*9
300*85*7.5
